T & FET Press Unique Features

  • Up to 12 independently controlled axes allow for the forming of leading edge and fuselage parts
  • Tangency tracking device decreases setup time for new part programs
  • Supplied with fixed or hydraulically adjustable die table
  • CNC control for high accuracy and repeatability
  • Optional bulldozer for reverse contour forming
  • Easy integration of automated die handling system
  • Proven design, providing quick and safe operation
  • CAM (Computer Aided Manufacturing) Tool design/manufacture and on-site set-up

Typical parts produced on this type of press are : leading edge parts; fuselage parts up to 20 feet long, fuselage parts requiring counter-forming capability.

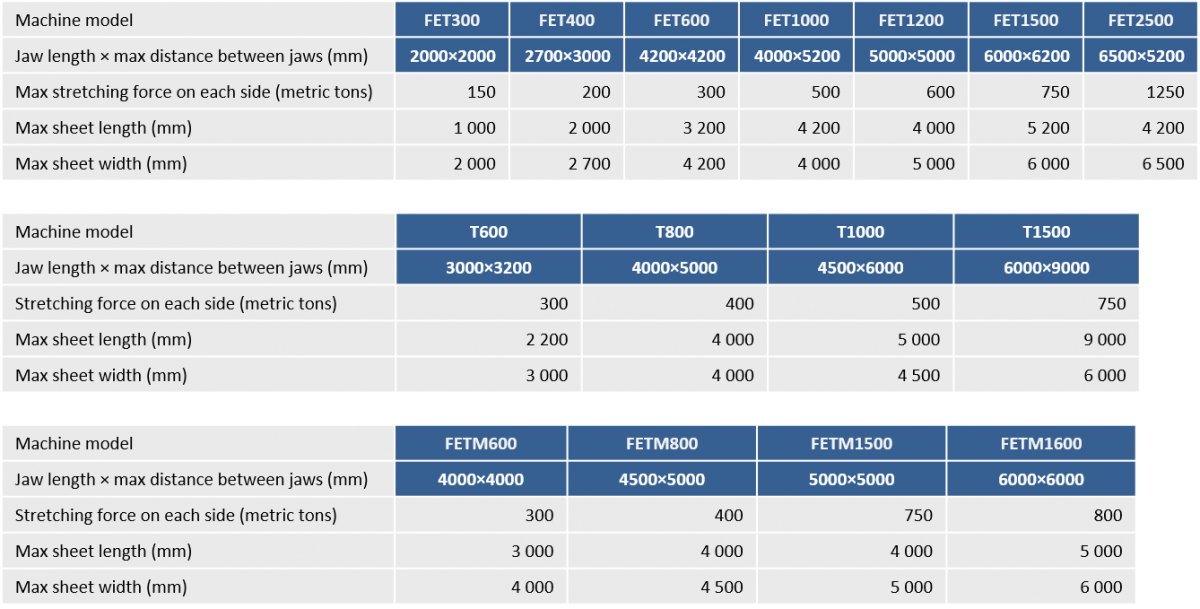

Standard longitudinal sheet stretch forming machines.



FET Standard features and peripheral equipment



Transversal sheet stretch machine optional features and peripheral equipment

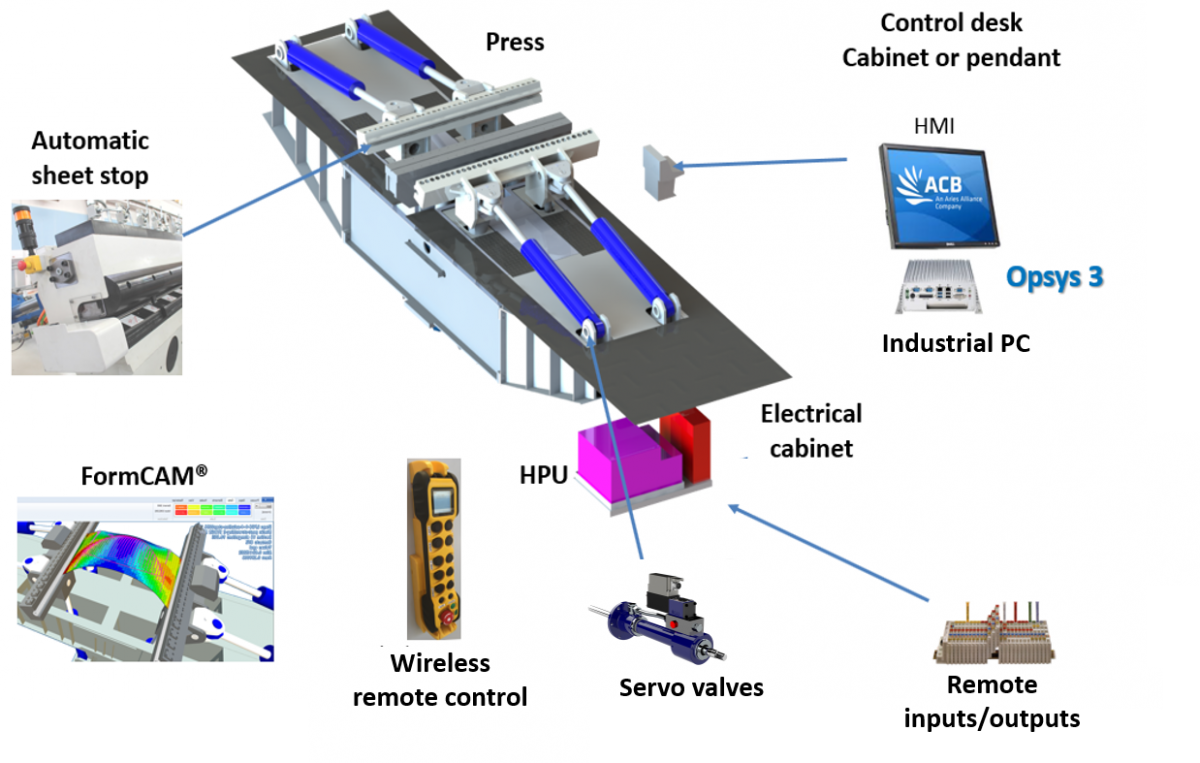

FETM Standard features and peripheral equipment

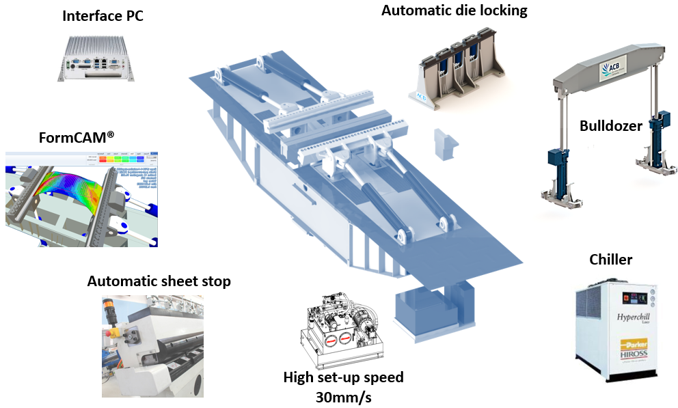

FETM Optional features and peripheral equipment
